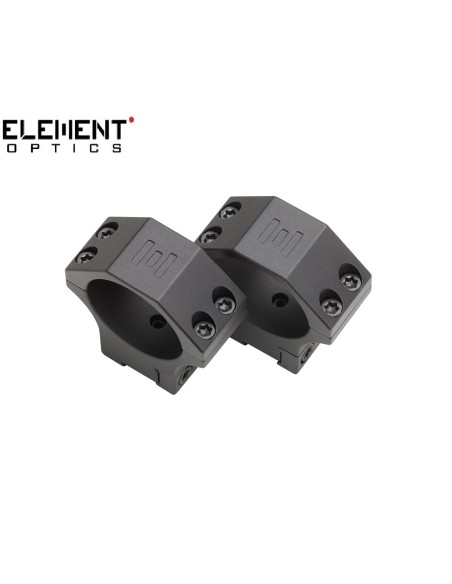

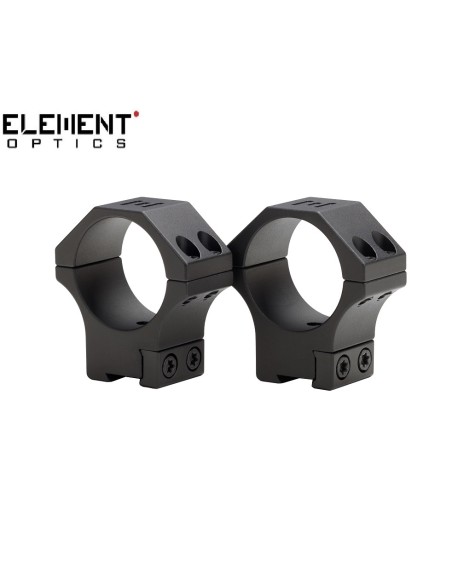

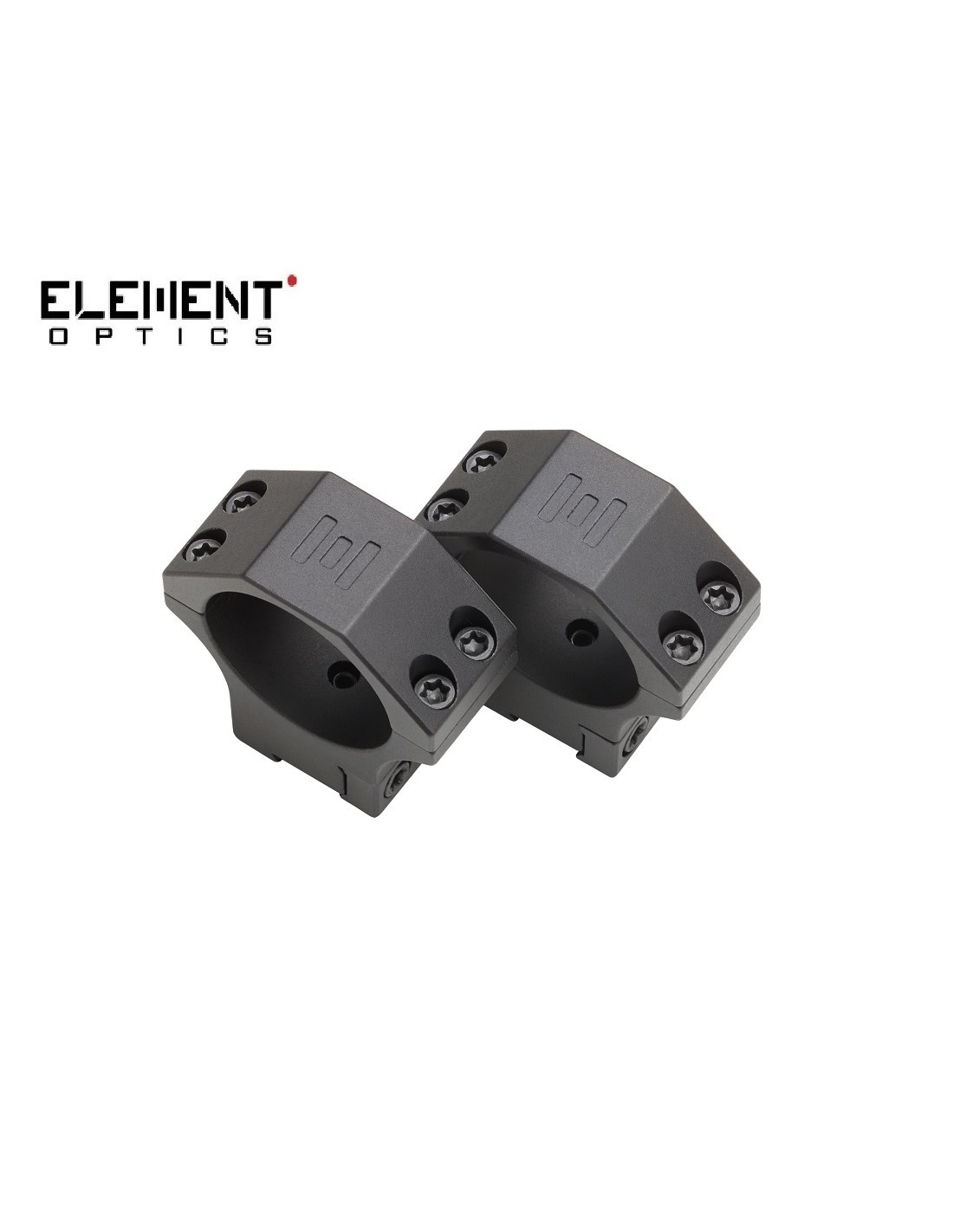

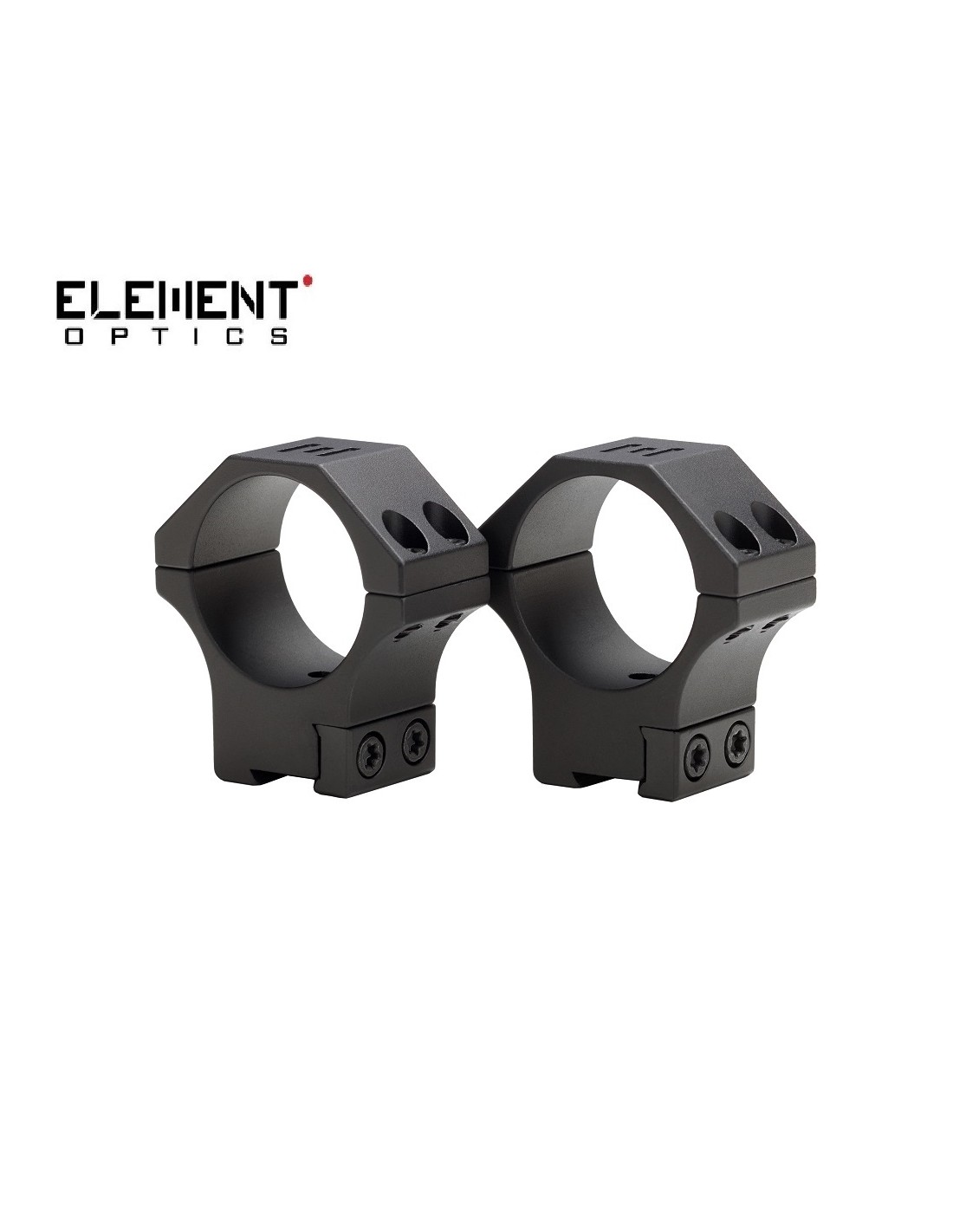

XT mounts provide a lightweight and affordable scope mounting solution without sacrificing build quality. Element Optics has designed XT mounts to be structurally sound, with an appearance that complements the most elegant rifle configurations.
Torque guidelines must be followed for the best possible results, as over-tightening the rings can cause temporary or permanent damage to the body tube and internal parts of the telescopic sight:
1 inch
HEIGHT: 31.7mm
WEIGHT (pair): 96.20g
30mm
HEIGHT: 32.2mm
WEIGHT (pair): 96g
| MATERIAL | 6061 ALUMINUM | |||||||
| MOUNTS TO |
DOVETAIL | |||||||
| REQUIRED TOOLS |
T15 TORX | |||||||
| MAXIMUM TORQUE (RINGS) |
18 INCH-LBS (2.0NM) | |||||||
| MAXIMUM TORQUE (BASE) | 35 INCH-LBS (4.0NM) | |||||||
