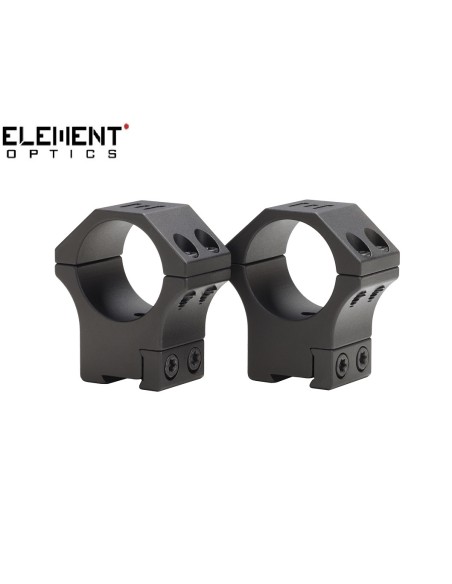

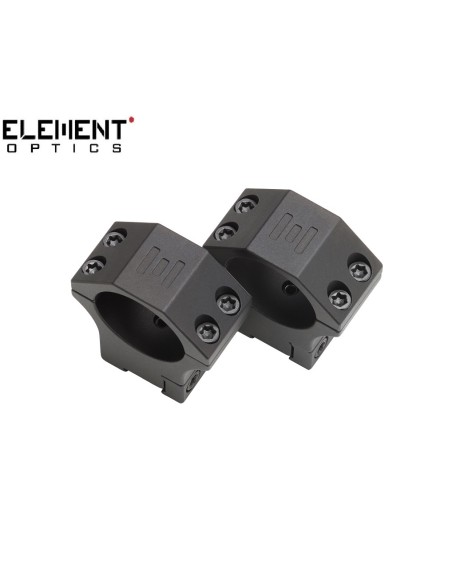

The XT Mounts provide a lightweight, affordable scope mounting solution without sacrificing any build quality. Element Optics has designed the XT Mounts to be structurally solid, with looks to compliment the sleekest of rifle setups.
Torque guidelines should be followed for the best possible results, as overtorquing rings can lead to temporary or permanent damage of the riflescope body tube and internals:
1 inch
HEIGHT: 26.7mm
WEIGHT (pair): 83.60g
30mm
HEIGHT: 27.2mm
WEIGHT (pair): 82.80g
| MATERIAL | 6061 ALUMINUM | |||||||
| MOUNTS TO | PICATINNY | |||||||
| TOOLS REQUIRED | T15 TORX | |||||||
| MAX TORQUE (RINGS) | 18 IN-LBS (2.0NM) | |||||||
| MAX TORQUE (BASE) | 35 IN-LBS (4.0NM) | |||||||
