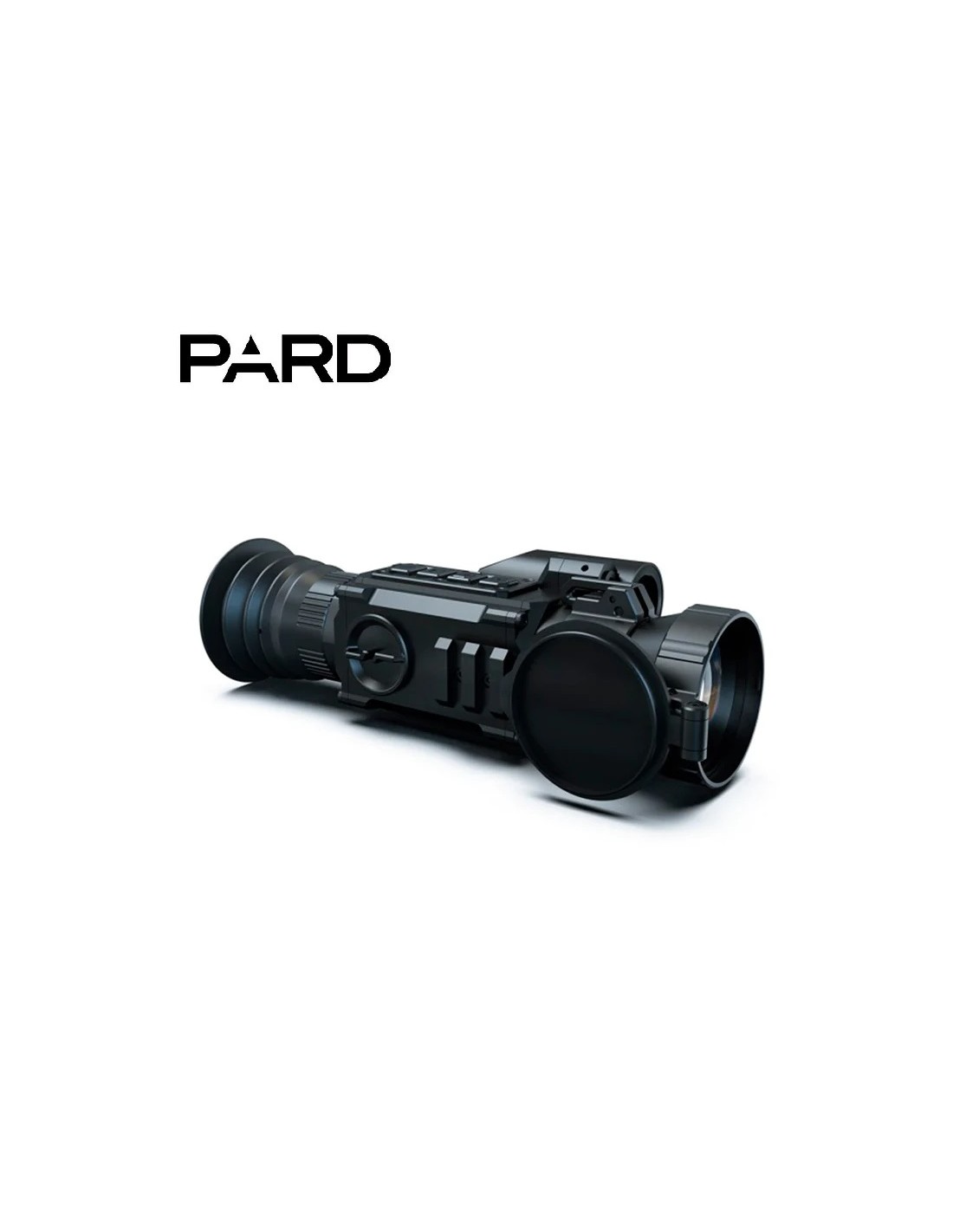

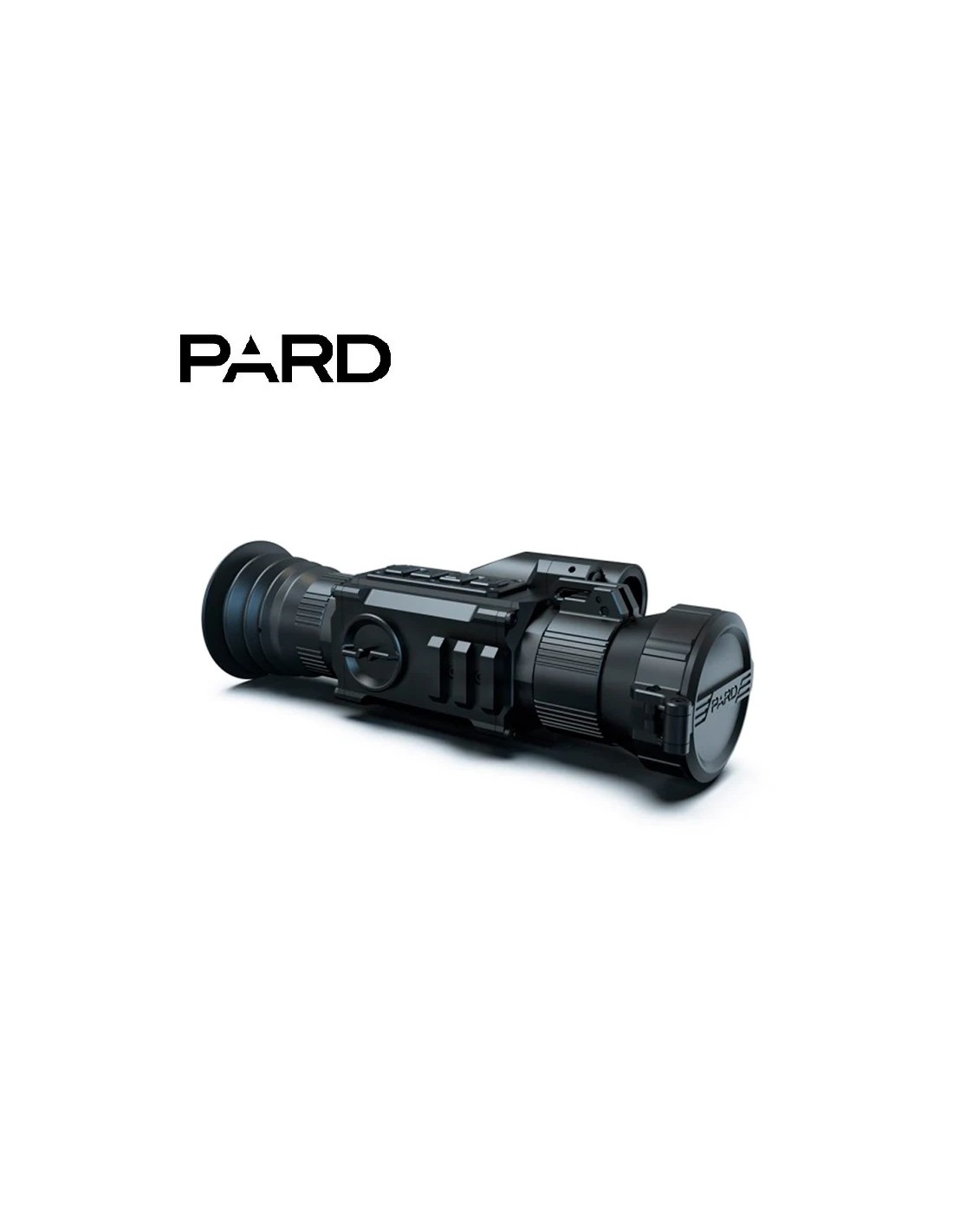

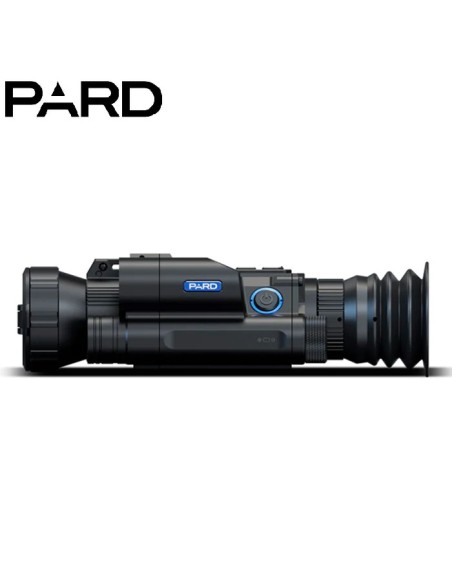

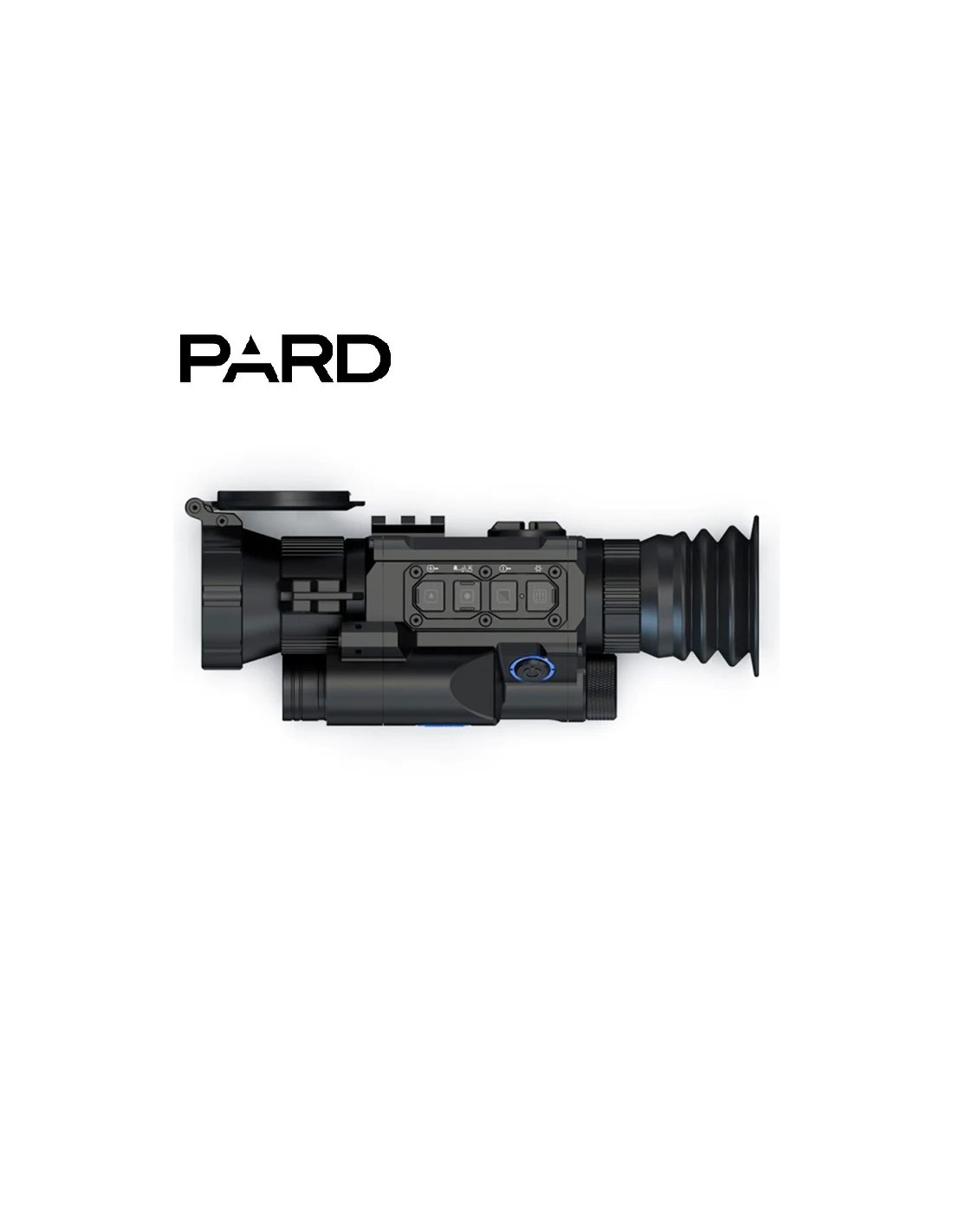

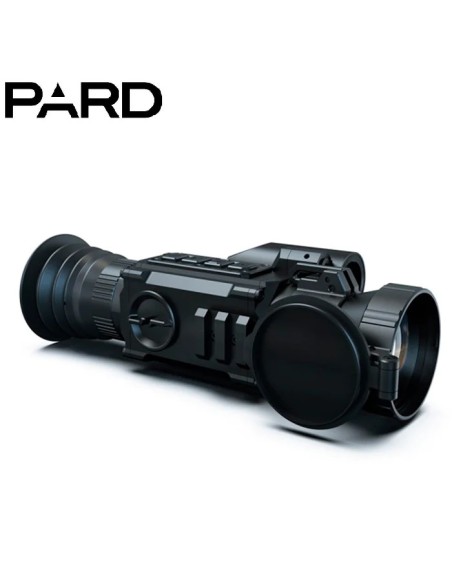

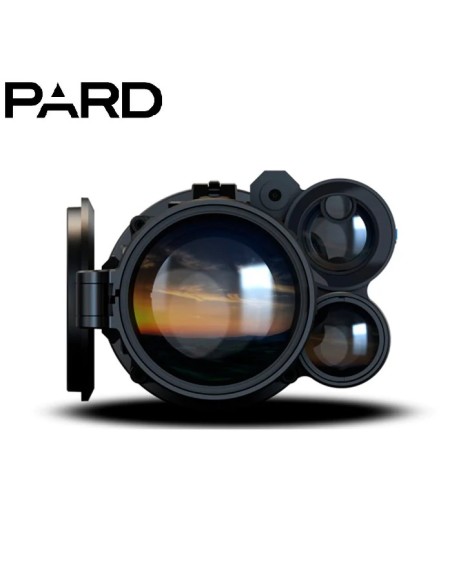

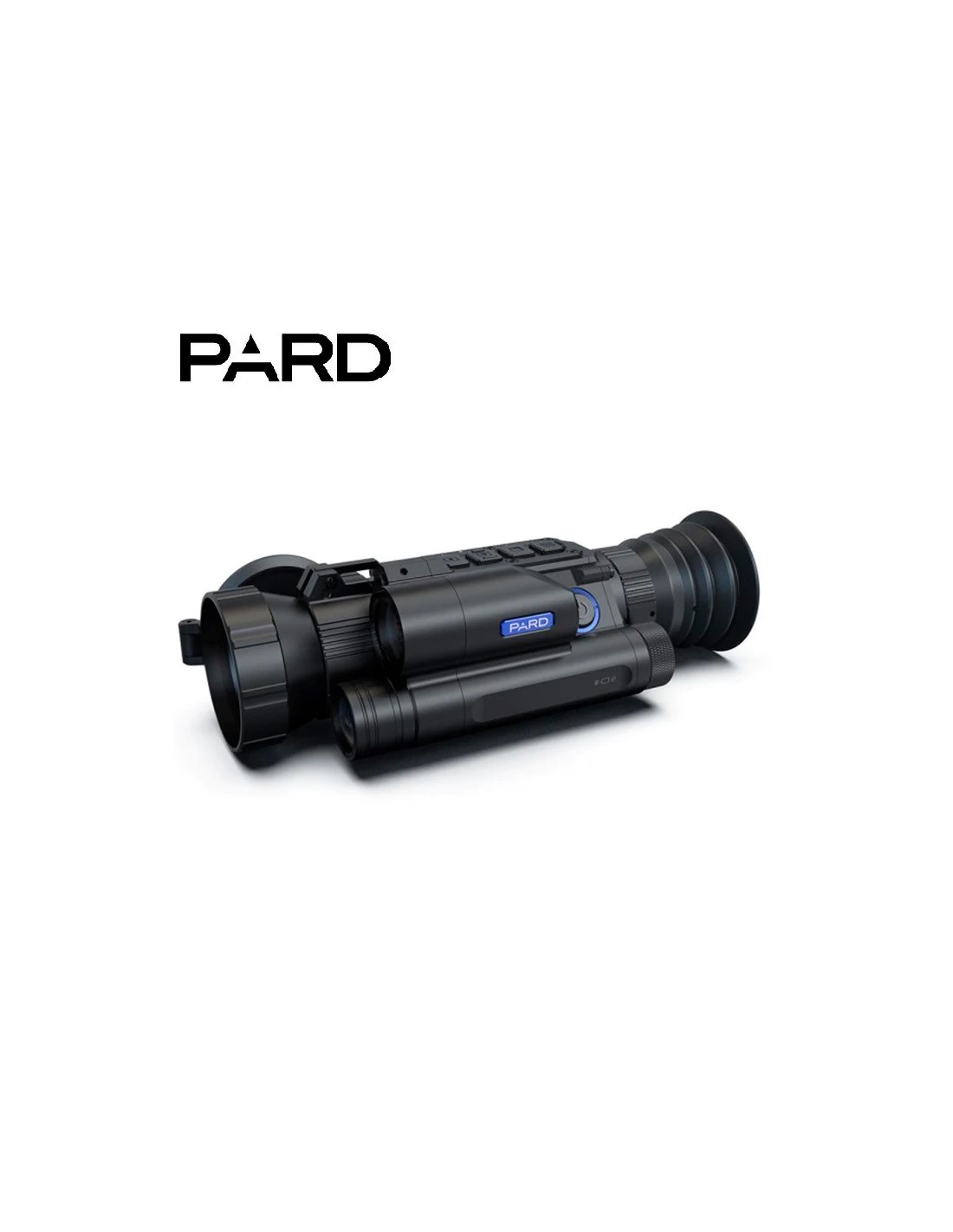

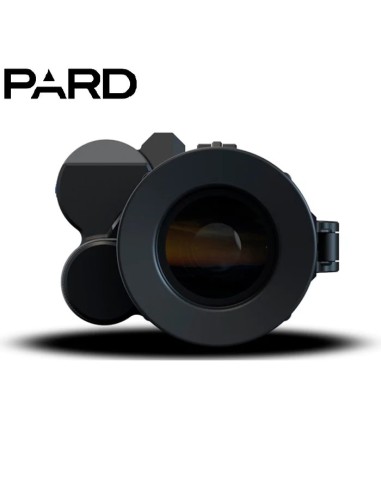

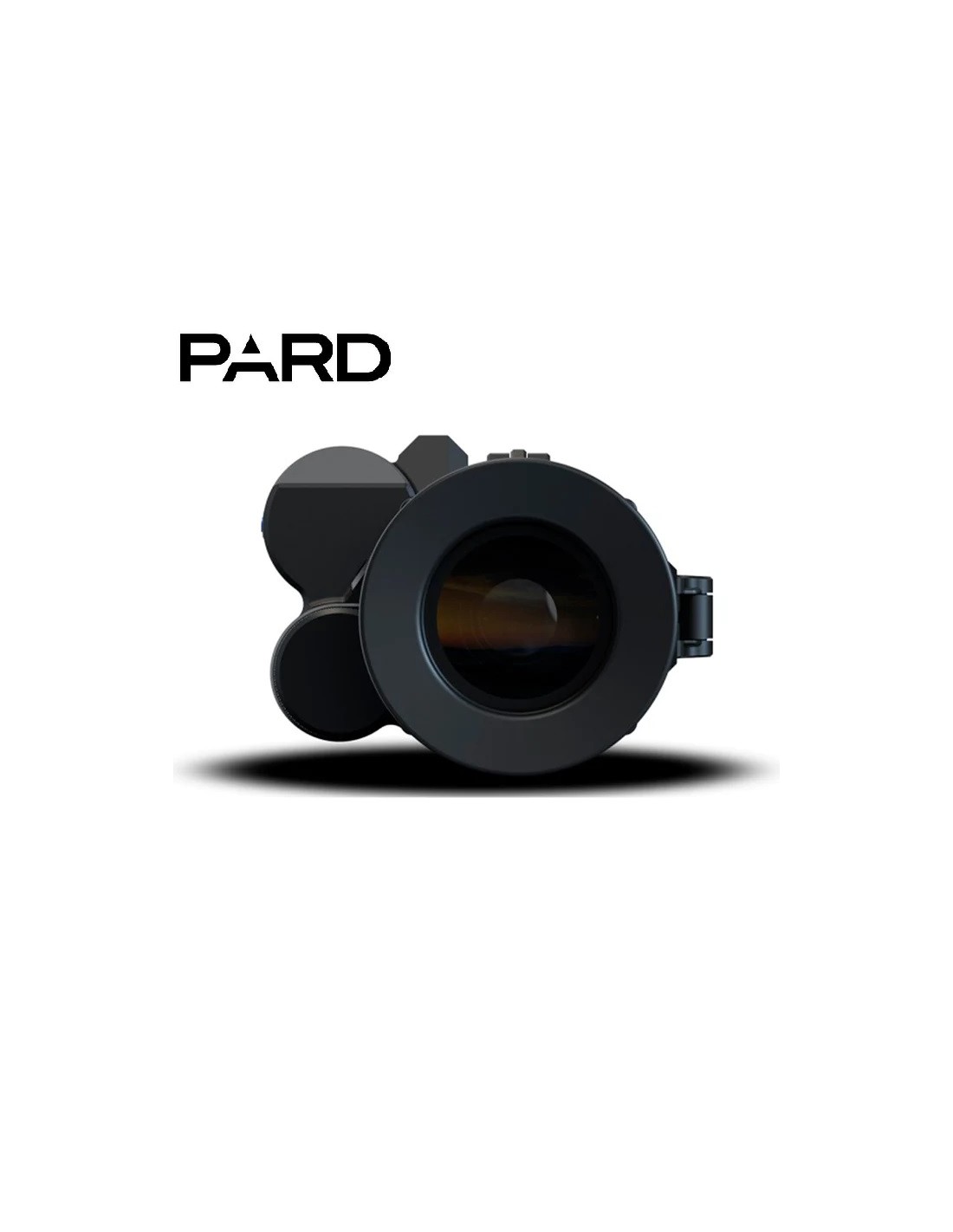

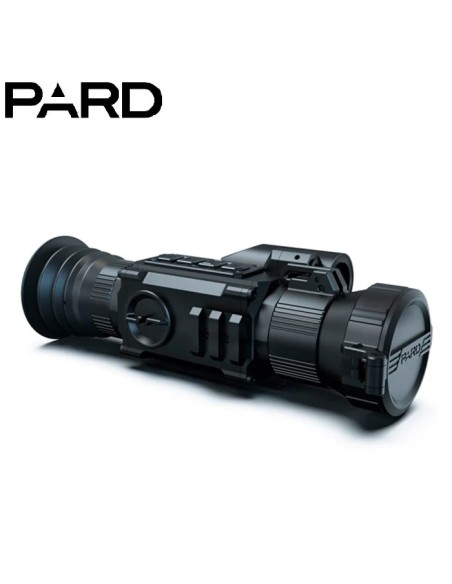

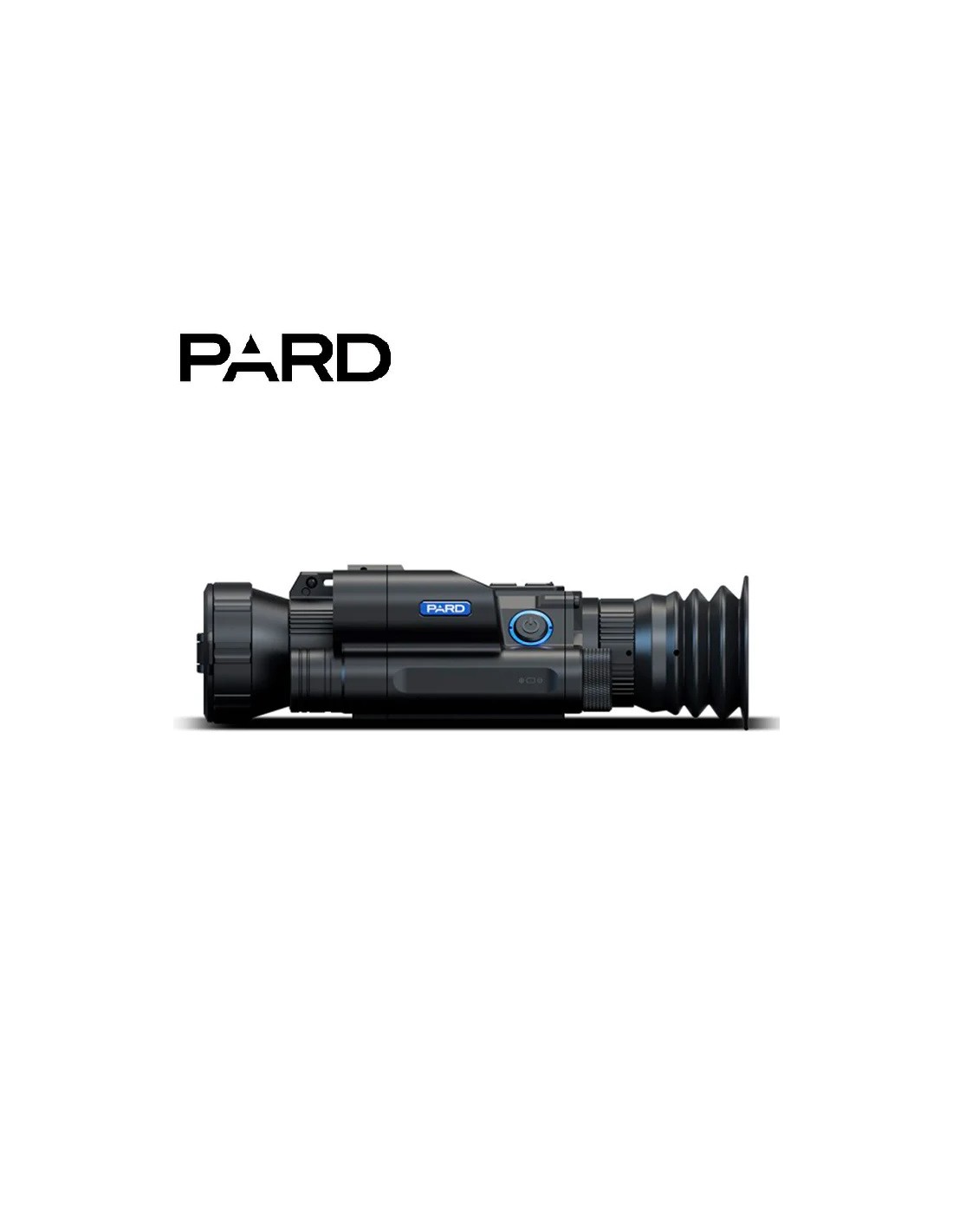

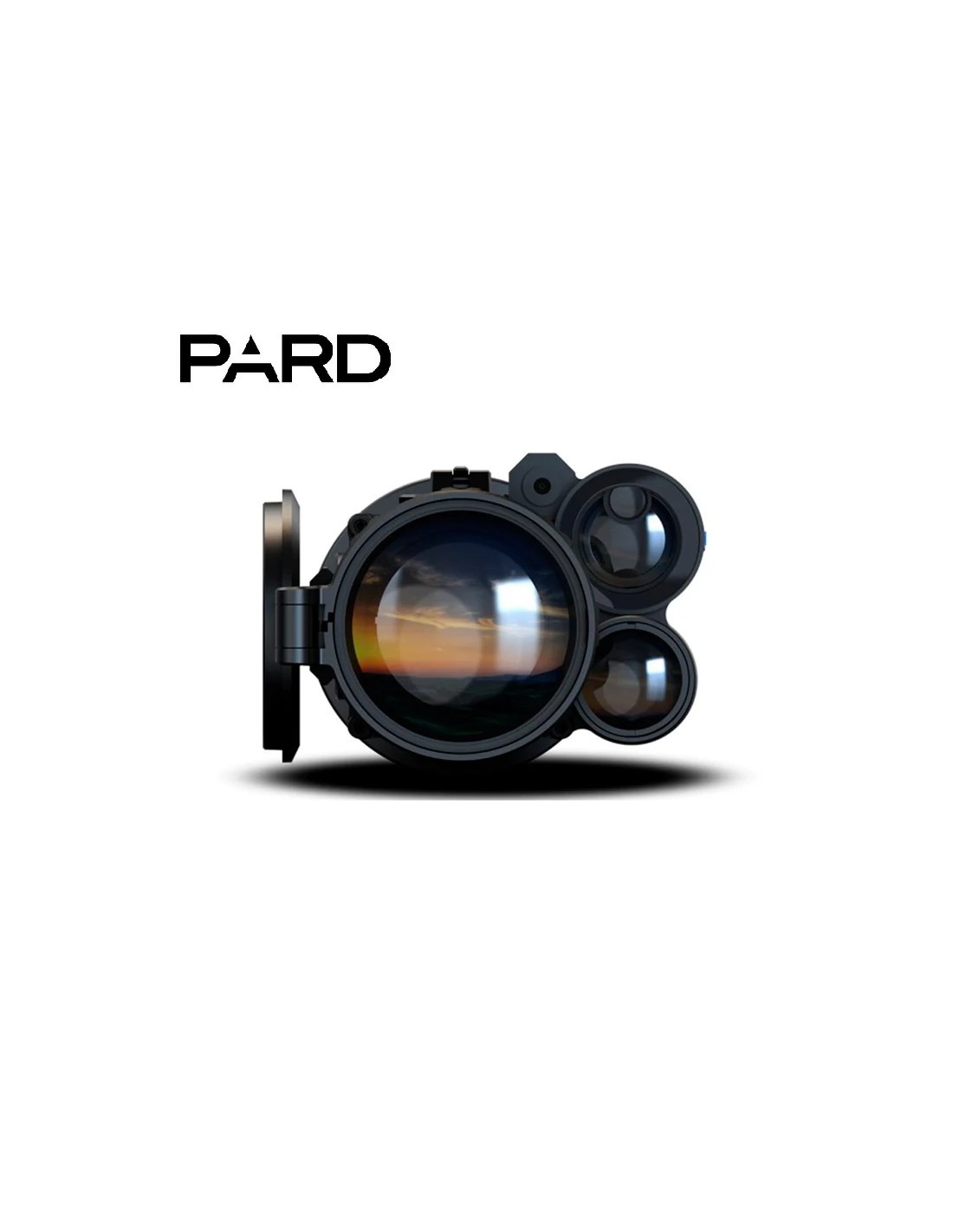

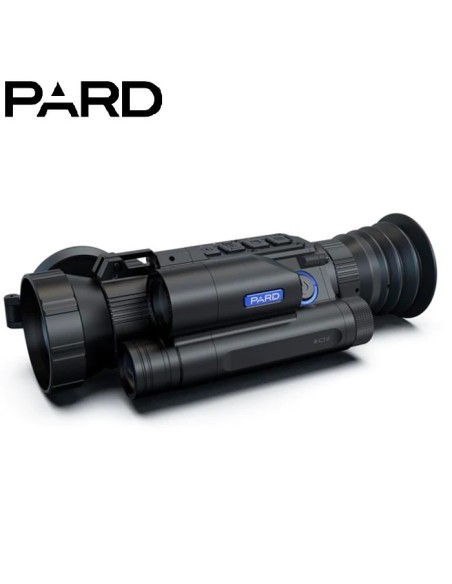

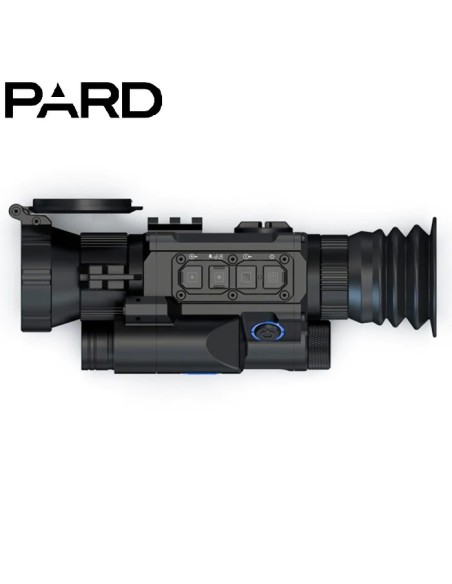

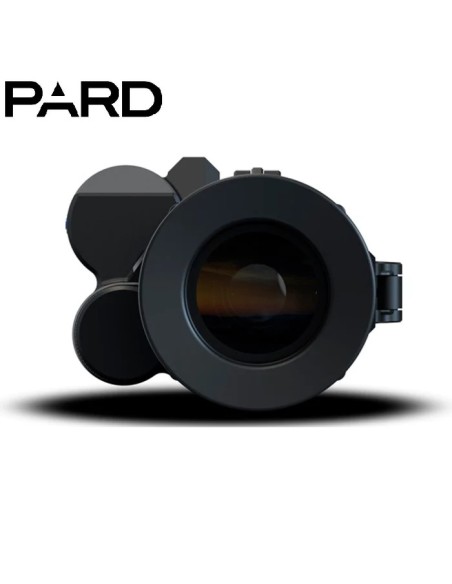

Compact, lightweight, easy to sight, and equipped with a thermal imaging sensor capable of detecting small temperature differences, the SA 62 LRF is a high-performance "smart" multi-reticle sight designed to be mounted on a rifle, but can also be used separately as a regular thermal monocular. The Pard SA62 45mm LRF thermal sight offers enhanced image resolution and clarity thanks to its 12um thermal imaging sensor, NETD=25mK, 50Hz, which, when combined with the infrared image enhancement algorithm (IREA), provides richer image details and exceptional target recognition. Additionally, it features a ballistic calculator to improve accuracy at long distances.
Compact and Lightweight: Easy to carry for hunting, fits well with different rifles.
› Foldable lens cover
› Focus lever
› Mute buttons
› Power on/off button.
Ballistic Calculator: The ballistic calculator can accurately calculate the bullet's travel distance and then indicate an auxiliary crosshair on the side. This enhances accuracy at long distances.
› Increase precision with smart technology
› Accurate trajectory for long-range targets
› Become a more skilled shooter
1200M Detection Range: The LRF module's volume has been reduced by 70%, and performance has improved by 50%, offering absolute precision and unmatched performance in any hunting situation you may encounter.
› Precise target acquisition
› Faster and sharper focusing
› Long-range accuracy
6 Reticle Options, 4 Colors: There are 6 reticle options available for better aiming visibility. You can choose from up to 4 different colors. Support for multi-user custom configurations when changing your rifle.
12um Thermal Imaging Sensor NETD<25mK
› High image resolution and clarity
› Excellent dynamic capture capability
> Extremely sensitive
Infrared Image Enhancement Algorithm (IREA):
› Lightning-fast processing capability.
› Exceptional target recognition.
› Image distortion correction.
Auto-Activated Recording
When you activate auto-activated recording, the device will automatically record in 20-second intervals when it detects the recoil from a shot. The 20-second incremental video footage will be saved on the TF card.
› Smart Recording. Capture exciting moments.
Optional Multifocal Lens
You can choose different focal length lenses ranging from 19/25/35/45 mm. The small lens is optimal for a wide field of view, and the large lens helps the shooter effectively identify multiple targets. Experience greater comfort when observing targets in different environments.
Flashlight
The integrated 100-lumen flashlight in the device serves as an auxiliary lighting option, helping to illuminate and locate various targets even in the darkest night.
6000J Recoil Resistance
The SA32/SA62 has a high impact resistance of 6000J. It is recoil-proof and capable of withstanding high-caliber rifle recoil.
3 Scene Modes
With a quick change function to choose from 3 scene modes (city/forest/rain). The image will adjust according to the selected scene mode, offering exceptional adaptability in different environments.
ADDITIONAL FEATURES
wifi, PIP Mode, Stealth Mode, 6 color palettes, video recording, IP67 waterproof
Technical Specifications of Pard SA 32 Thermal Sights:
|
Sensor › Resolution: 640x480 px. › Frame Rate: 50 fps. |
Optics › Objective Lens: 45 mm. › Field of View (HxV): H: 9.7º, V: 7.3º, D: 12.2º. › Diopter Adjustment (°): -5D~+5D |
|
Display › Type: OLED › Reticle Color: Red/White/Yellow/Green. |
Photo / Video › Photo Resolution: 2592x1944 px. › Video Format: MP4. |
Other Specifications
USB Type-C.
HDMI Output.
WiFi Connectivity.
Compatible Applications: OKCAM, Roadcam.
Battery: Lithium Ion 18650*1
Operating Time: Up to 5 hours.
IP67 Protection Grade.
Operating Temperature: -20 - 50°C.
Recoil Power: 6000J.
Dimensions with LRF (length x width x height): 195x79x59 mm.
Weight without LRF: 425 g.
